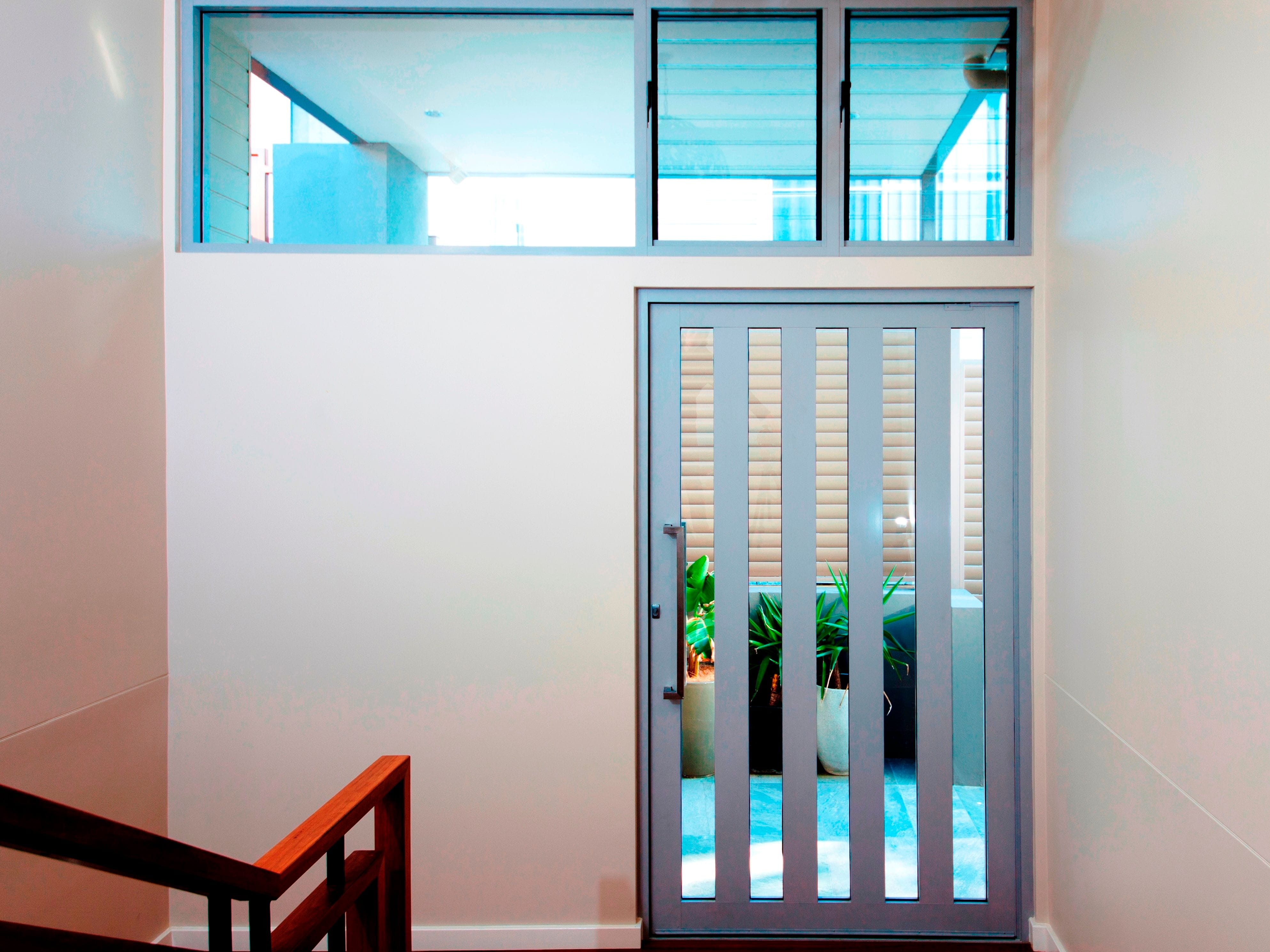

Commonly accompanied with sidelites or highlights these doors can couple to any of our window range to create an eye catching feature.
Parliament hinges can be fitted to allow the door to fully open 180°, and be fitted with inlaid Sashless ClearVent windows, allowing screened ventilation when closed. The frames are designed to carry a variety of glass types including double glazing.
Various locks are available including electric strikes, colour match lever handles and stainless steel entry handles.
Custom design features including horizontal or vertical midrails, colonial bars and feature glass can be used to create a door exactly as you want.
Download our product information brochure here
The following table lists some of the typical WERS ratings for this window type. For a complete list of all rated glass and frame combinations please contact the office.
Max window height: 3000mm - add a hilite for increase height
Max window width: 1200mm per door sash
Max glass thickness: 20mm
Frame depth: 102mm
Max water rating:
150Pa Open Out
150Pa Open In
Ando Lock (optional)
ICON Lock (optional)
ICON SS D Pull Handle - 300mm (optional)
SS Entry Pull Handle - 600mm (optional)
